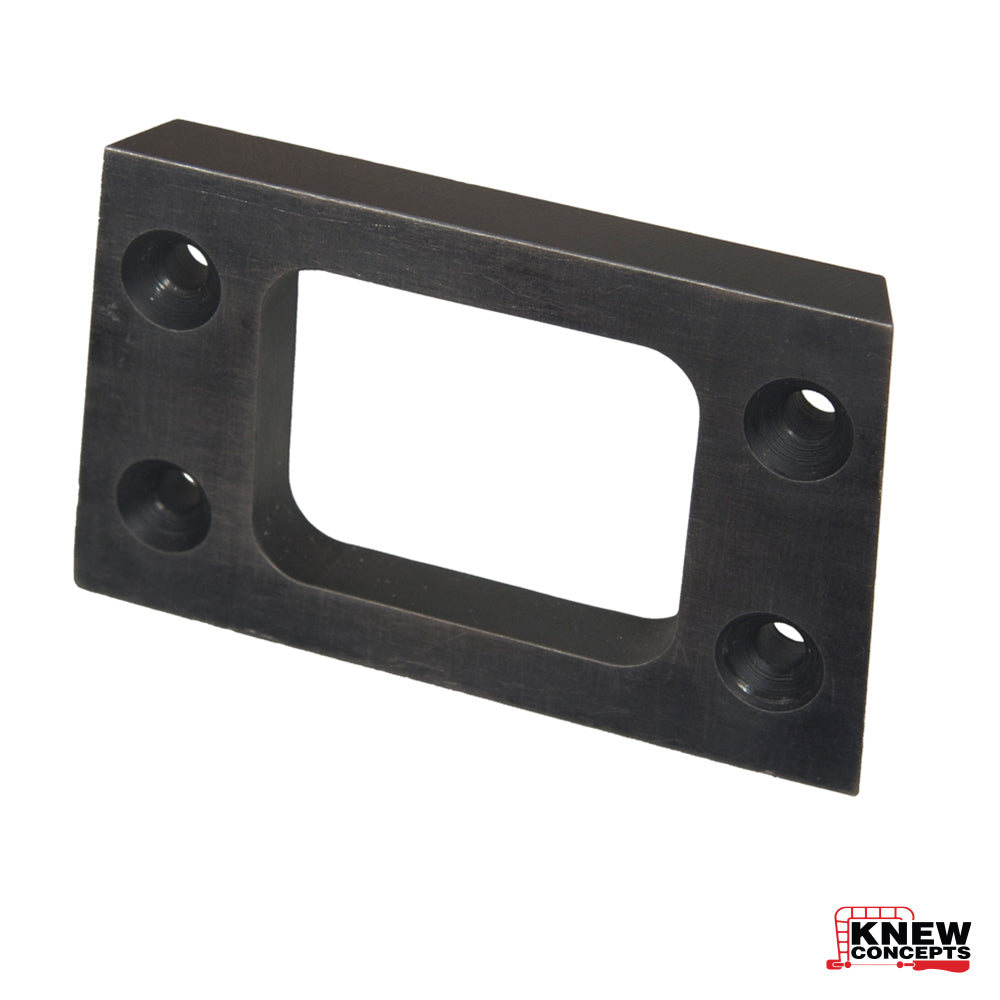

Dovetail Mounting Plate

A standard, American made, versatile slide and lock dovetail mounting plate—made in the USA, used for adding another location for your dovetail mount accessories, or a permanent location for your Precision Sawguide or Bench Pin.

Specifications:

• The dovetail plate is 2" tall, by about 3.25" wide (at widest)
• The holes are 0.200" in diameter, and are countersunk for #10 screws
• The holes are 1 inch apart (on center) vertically, and 2.5 apart (on center) horizontally

It’s a handy way to store your benchmate or other dovetail system accessories. Just put several of them in a handy spot, and rack all your tools ready at hand and out of the way.
